Connected wireless control system iQ
Connected wireless control system iQ
Thermotech's new wireless and connected control system iQ simplifies both the installation and the individual control of rooms and zones. Connecting thermostats to the base unit is done easily in an app.

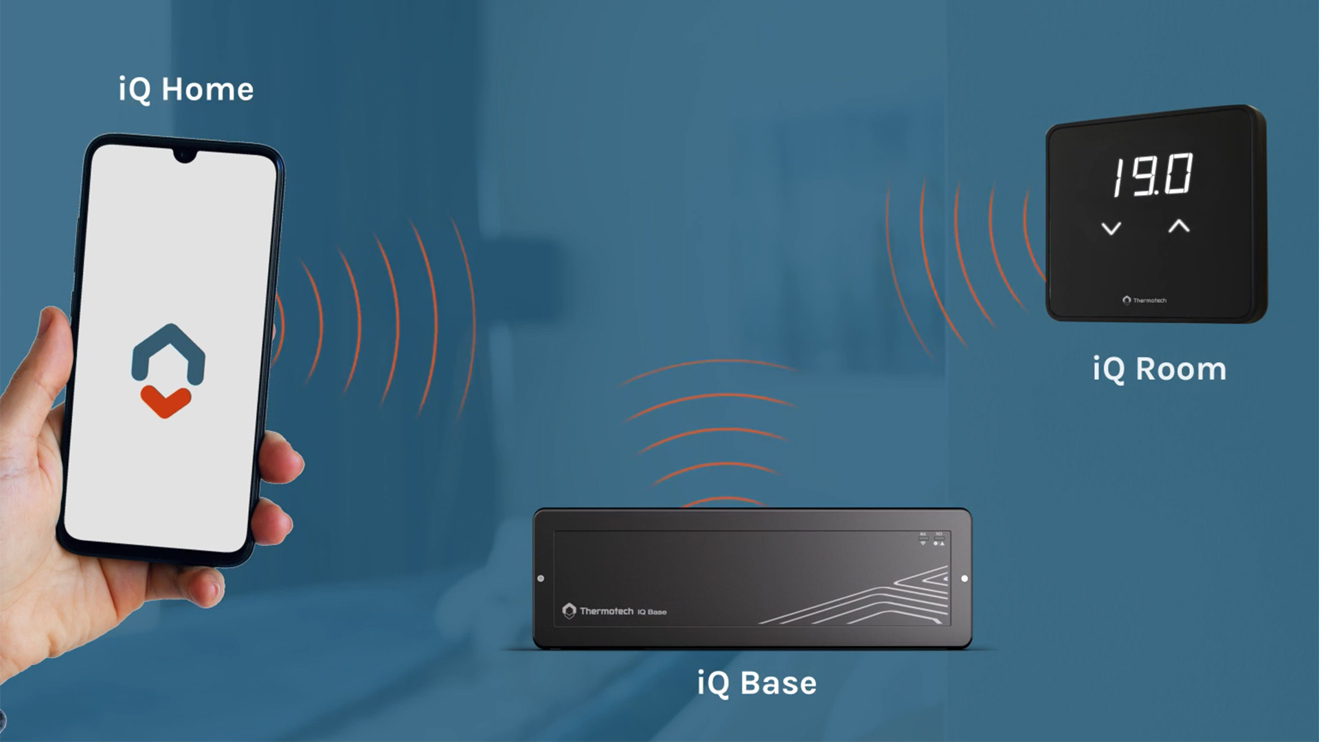

The control system iQ consists of:
- iQ Room - Wireless display thermostat white or black
- iQ Base - Wireless base unit
- iQ Home - App for Android and IOS
The control system is connected via Bluetooth and the connection of thermostats to the control unit and all individual settings, zoning, room and temperature settings etc. is made in the iQ Home app.
The system uses PID control to always maintain desired room temperatures and optimized operation.
The iQ control system has all the usual functions such as locks for public environments, selection of operating modes (ECO, freeze protection and comfort), minimum and maximum limitation of room temperature and brightness setting of thermostats.
Several new smart functions
- Smart fireplace and bypass function
- Option to regulate both heating and cooling via the heat pump
- Possibility of radiator control
- Thermostat identification
- Access to historical operational data
- Option to set PIN code to restrict access
All these functions are selected in the iQ Home app for each room or zone. By adding several rooms to a zone, the operating mode and other settings can be easily changed for the entire zone and the whole house, for example when traveling or in holiday homes where you want to lower the temperature in general to save energy.

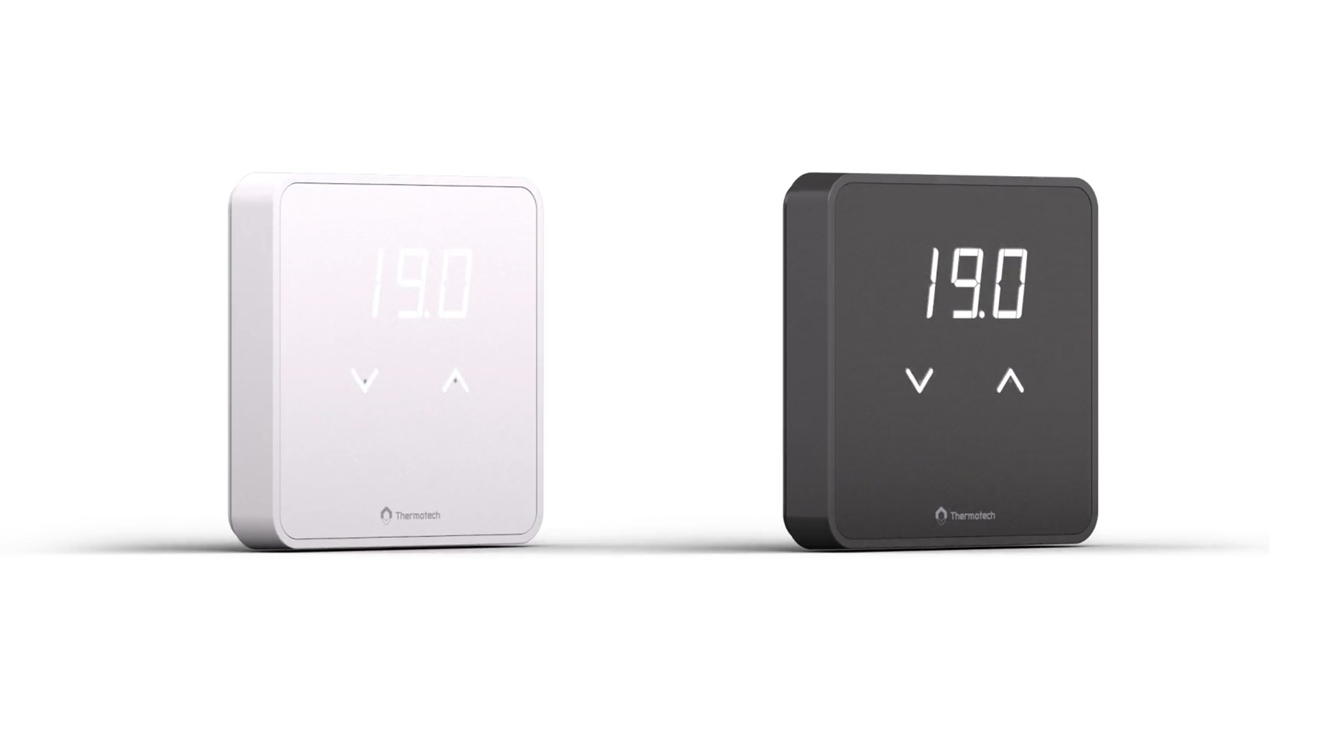

Wireless display thermostat iQ Room

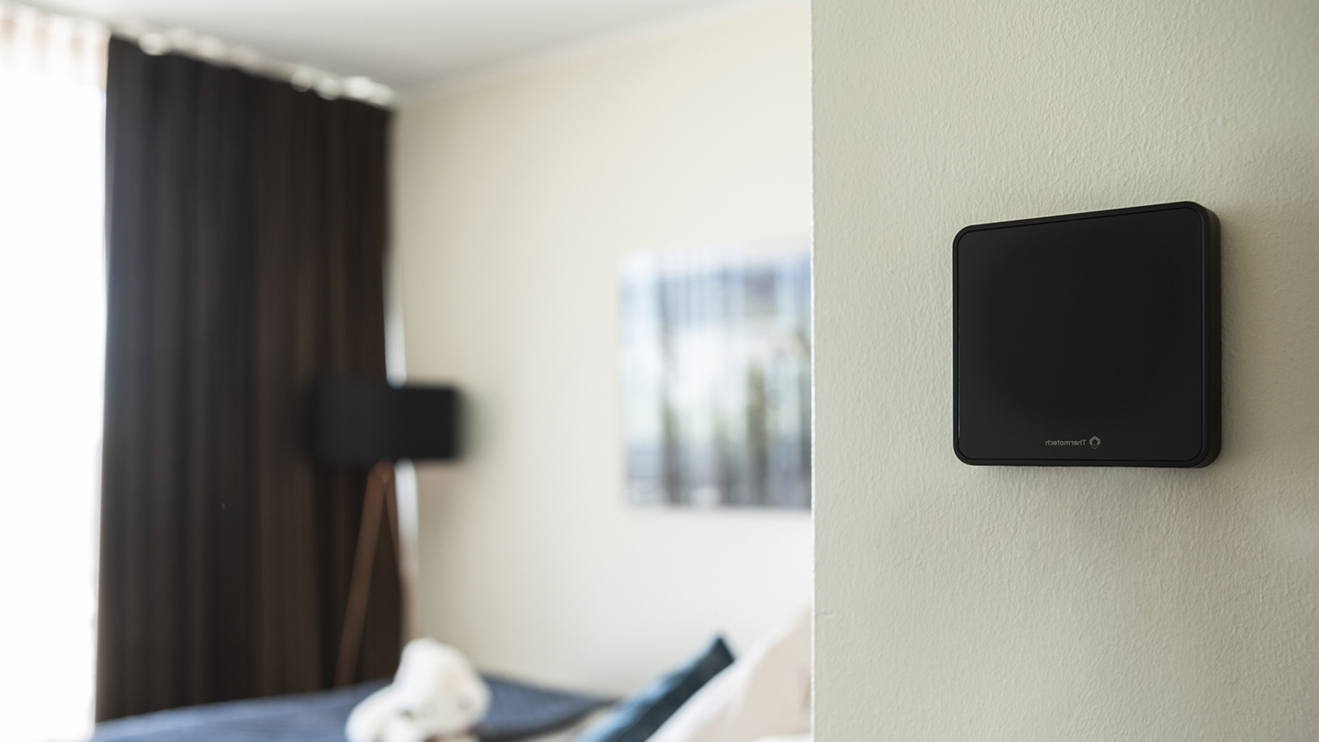

The room thermostat is a thin and discreet display thermostat with a depth of only 16 mm, and is perfect for both new construction and renovation. It is available in white and black. The display is off as default and the touch buttons are only visible when the display is touched.

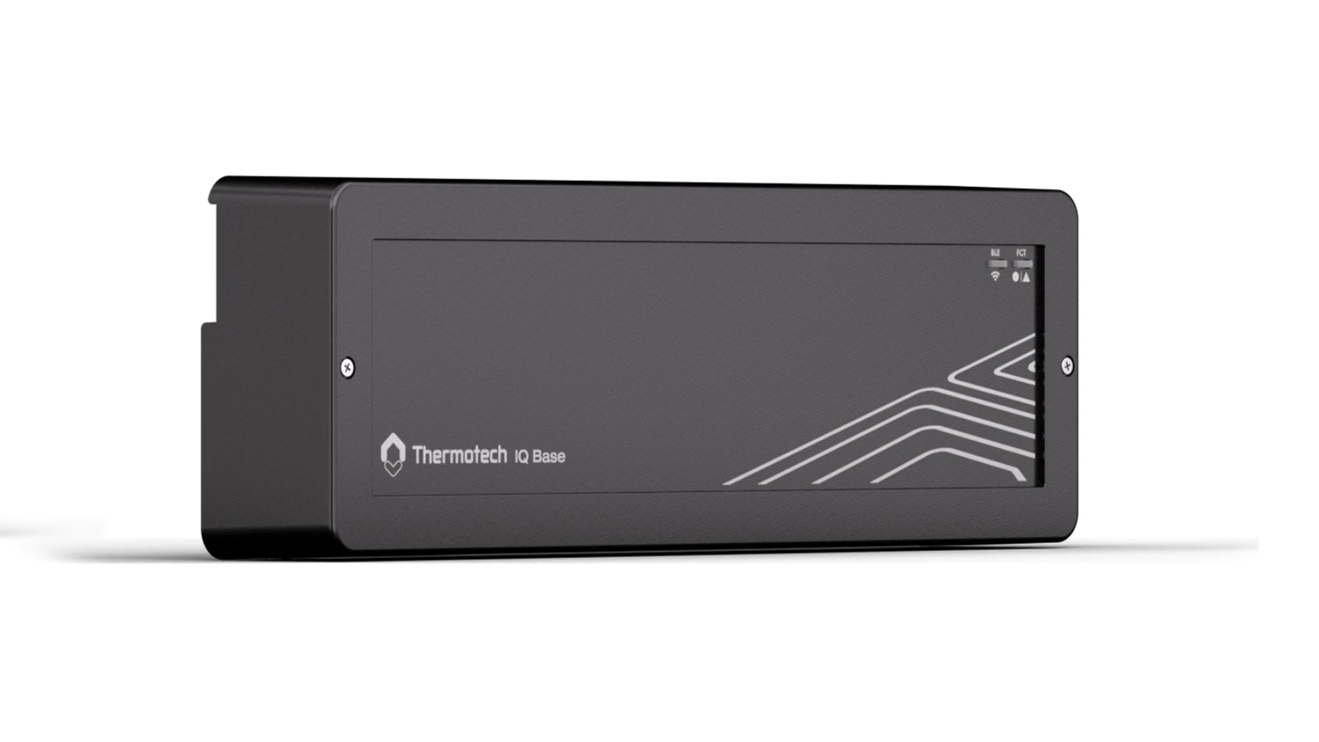

The base unit iQ Base
The wireless base unit has room for 12 actuators which can be controlled individually or grouped. Selection of which channel(s) should be controlled from the respective thermostat is made in the app.

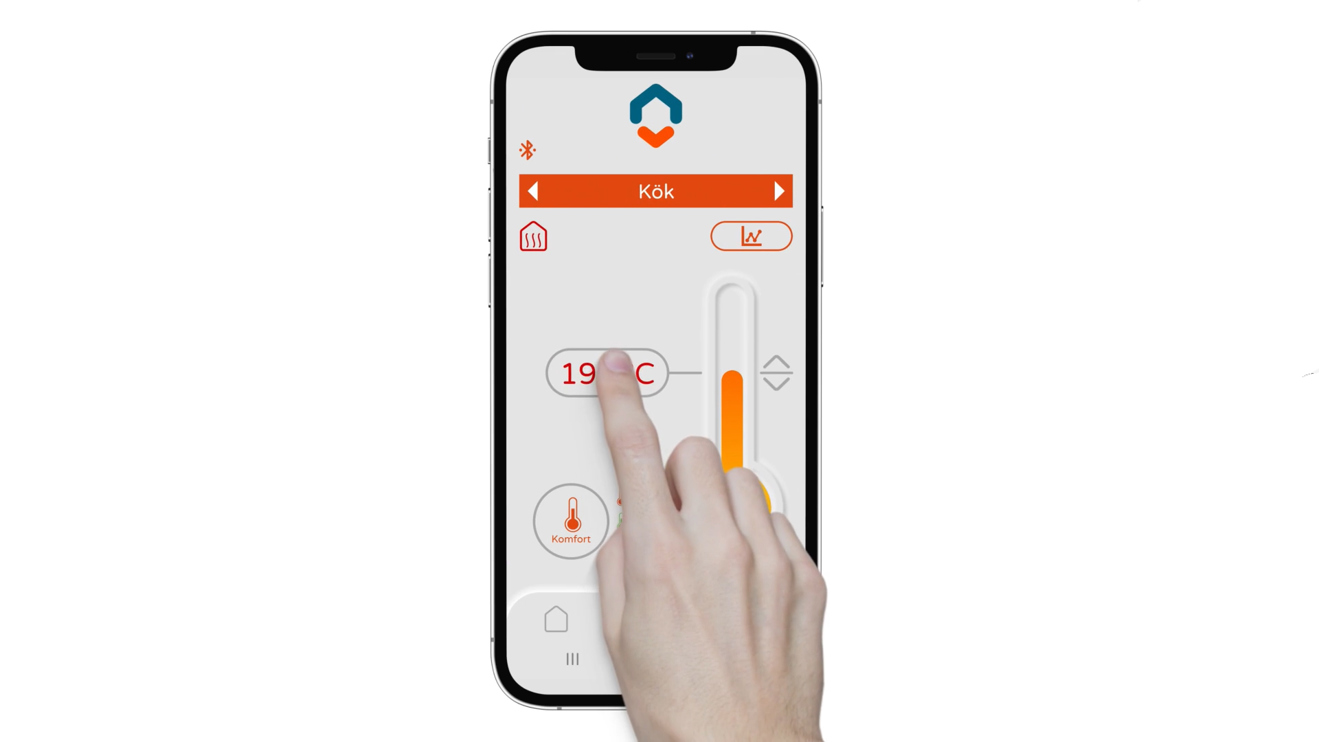

The iQ Home app
The iQ Home app can be downloaded free of charge for both Android and IOS. The system will be supplemented with a gateway in order to access the facility via WiFi or Zigbee wherever you are.
Free download of the iQ Home app here:
Documentation:
Installation guide - Room thermostat iQ Room
Installation guide - Control unit iQ Base
Manual - Room control system iQ
