Prefab Integral with feeding pipes through the cabinet

The Integral is delivered fully assembled in a cabinet with a package for installing feeding pipes through the cabinet. It is adapted for 2-storey and multi-storey buildings where manifolds should be connected in series . The Integral is available from 1 – 9 loops and can handle areas up to 200 square meters. The manifold cabinet has a robust and stable construction in sheet metal and is adapted for 95 mm wall bolt.

integral, shunt, manifold, underfloor heating

Product features

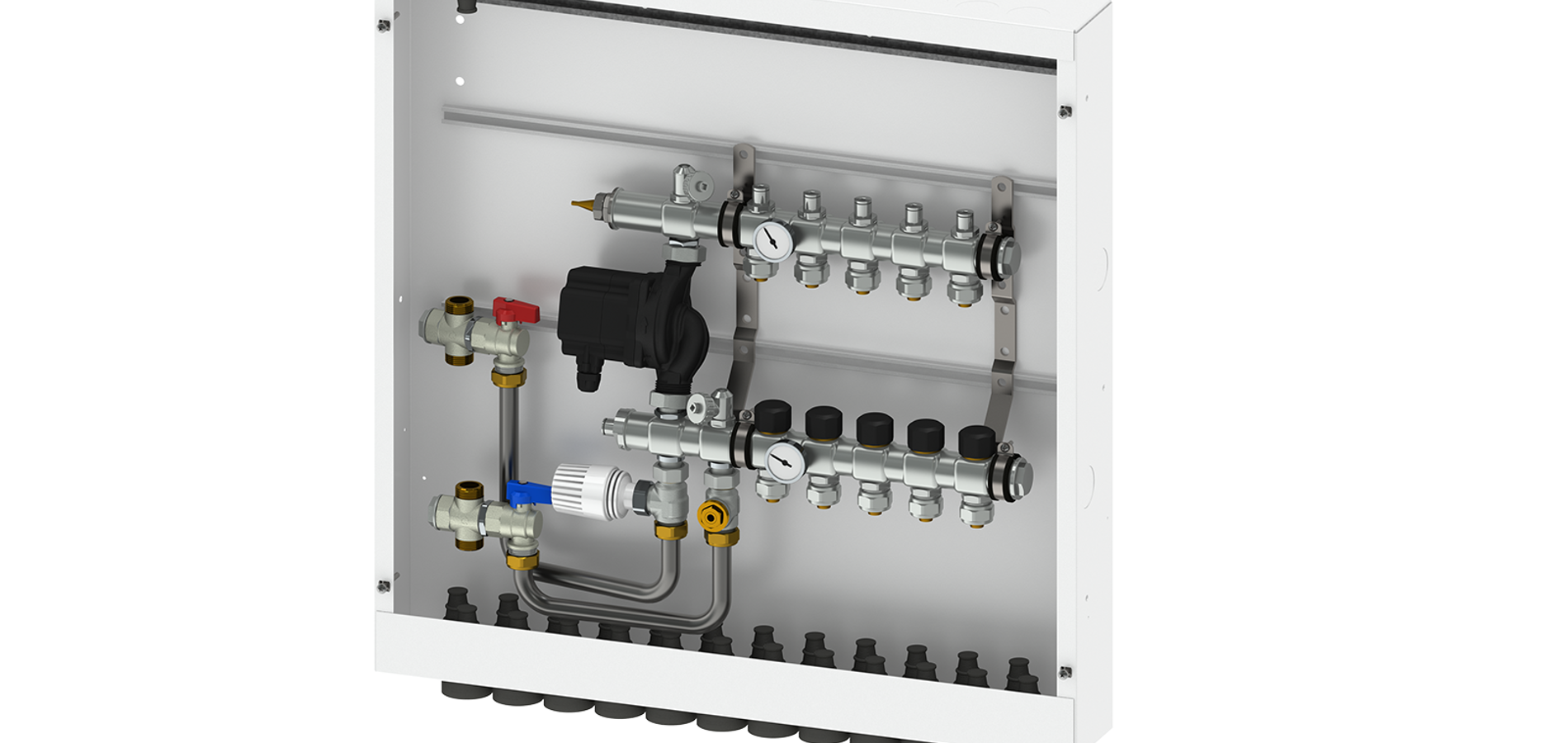

Integral in cabinets with feeding pipes through the cabinet is adapted for multi-storey buildings. The integral is delivered fully assembled in a cabinet and can be easily adapted for all pipe dimensions. Front with frame is ordered separately.

COMPONENTS

Manifold cabinets
Console
Circulation pump
Self-acting thermostat
Package for continuous feeding
Thermostat valve
Adjustment valve
Filling and draining valves
Clamp ring couplings 17 mm (supplied as standard)
Thermometers
Protective bag
Marking tags

MEASUREMENTS CABINETS

Article No. 62752
For 1-3 loops
Width x Height x Depth: 540 x 710 x 95 mm

Article No. 62753
For 4-6 loops
Width x Height x Depth: 690 x 710 x 95 mm

Article No. 62754
For 7-9 loops
Width x Height x Depth: 840 x 710 x 95 mm

We like that the cabinet:

Is a compact shunt and distributor fully assembled in a cabinet
Enables continuous feeding in cabinets
Accommodates in 95 mm wall construction
Has adjustment valve
Has shut-off valve on both supply and return
Has a flexible choice of couplings for all pipe dimensions

Article No: 78735-00X
No of loops: 1 - 9

Regulation:
51910 Self-acting thermostat (water) - delivered as standard
67001 230 VAC, 3-point
67002 24 VAC, 3-point
67007 24 VAC, 0-10V
37013 Klima Regulation package wired
37014 Klima Regulation package wireless

6275X-1 Front for cabinet

Application example: 2-storey house

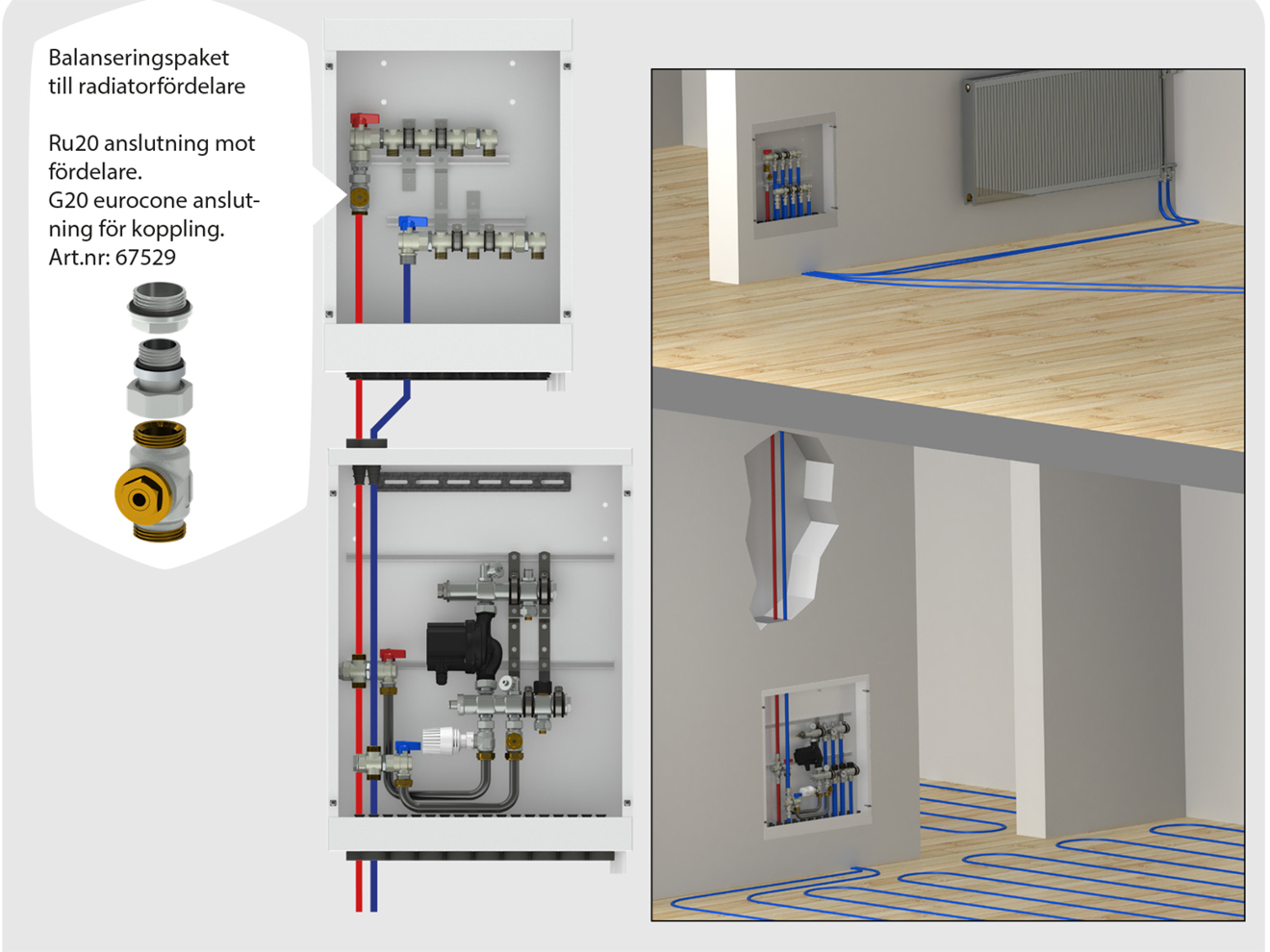

A typical heating system solution for detached houses is a combination of underfloor heating and radiators. The underfloor heating is installed on ground level, usually as part of a concrete slab, with radiators on level 1. Thermotech offers a complete prefabricated solution for houses with this type of heating system.

All interconnections are in waterproof cabinets - according to current Swedish Säker Vatten regulations.
Flexible choice of couplings for all pipe dimensions.
Adjustment valves for balancing between floors and shut-off valves in each cabinet.

When installing, supply pipes are connected from the heat source to the underfloor heating cabinet on the lower floor and then on to the radiator cabinet on floor 1.

Application example: Multi-storey buildning

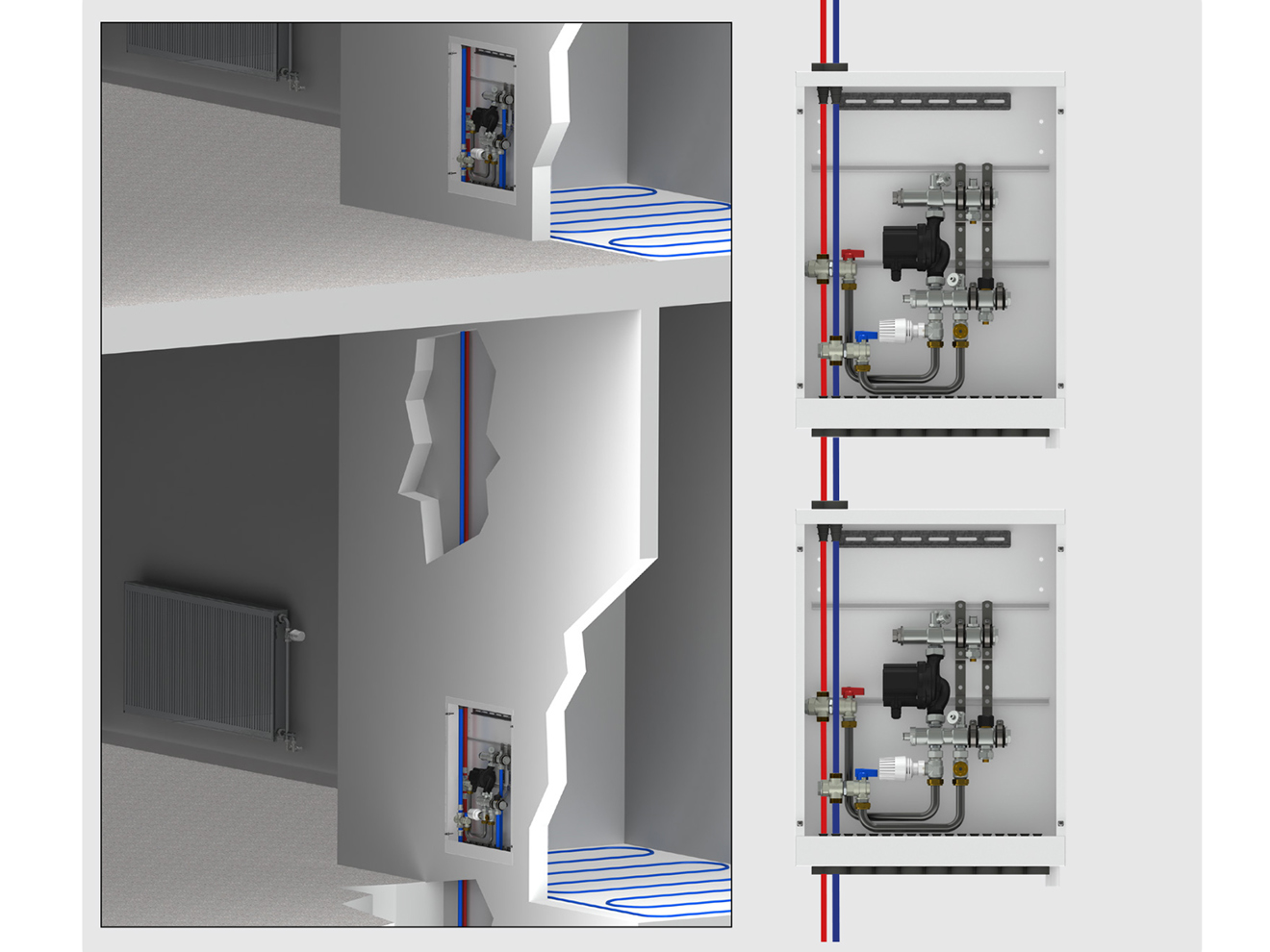

Ett alternativ vid installation av golvvärme i flervåningshus är att använda sig av mindre shuntar för varje våning eller lägenhet. Thermotech erbjuder en komplett prefabricerad lösning för flervåningshus där denna lösning används.

All interconnections are in waterproof cabinets - according to current Swedish Säker Vatten regulations.
Flexible choice of couplings for all pipe dimensions.
Adjustment valves for balancing between floors and shut-off valves in each cabinet.

When installing, the supply pipe from the heat source is connected to the lowest-placed underfloor heating cabinet on the lower level. then continue to the next cabinet, and so on.
